| Combination of a wall mounted grab
bar and the proven benefits of a pivoting and locking dual rail!
Installs like a grab bar! Reversible,
mounts either left or right!

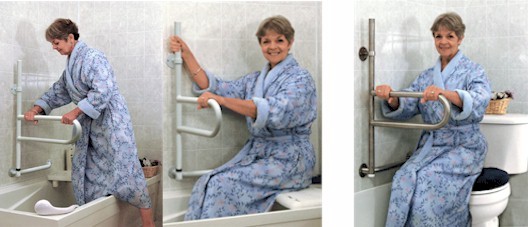

Can be installed as a tub grab bar or beside your toilet
 The Dependa-Bar's™ pivot arm locks every 45° (five separate
positions), providing a
support
rail that you will move with you. When not in use, the
Dependa-Bar™ conveniently locks against the wall. Ideal where the
bathtub is used by other family members who do not need the support.
It can, of course, be positioned so that the swing arm is always in the
correct position for entering the bathtub.

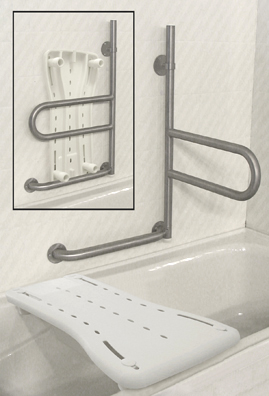

The grab bar mounts using conventional means to walls. A
separate fastening system (Wingits, sold separately) is available in cases
where the wall stud location is not appropriate. Pivoting Grab Bar is ADA Compliant
The fixed horizontal grab has an ADA compliant
diameter (1.25") and a wall clearance of 1.50". When locked against
the wall, the Dependa-Bar™ is aligned with the fixed, horizontal grab bar.
Stainless steel construction will provide an easy
to clean, durable grab bar for years of use. Water resistant, will
not rust!
Dependa Bar Technical Spelcifications:
|
All stainless steel construction |
| Pivot Rail |
1.25 inch
grip diameter. |
| Pivot Rail Height |
30.5 inches vertical rail
height. |
| Pivot Rail
Length |
"P" shaped
dual rail extends 18" from bathtub wall. Six inches between
the upper and lower bar of the "P".
|
| Horizontal Grab Bar |
1.25 inch grip diameter; 1.5"
clearance from wall. Height adjustable at time of
installation - typically 4 inches from top of bathtub.
|
| 18" and 32"
available for lower grab rail |
| Weight Capacity |
250 lbs. |
Bath Board
The sturdy plastic board rests across the rim of the bathtub. The
wider end of the bath board makes it easier to transfer over the bathtub
threshold (rim).
Anti-slip friction feet adjust to fit the width of your bathtub,
providing sufficient friction to stabilize the bath board and keep it in
place. The rubber rubber feet will not damage your bathtub surface.
Easy to install - no tools required. All plastic hardware is
included.
Easy to clean. Wipe the board with a cloth to keep board clean
after bathing. Holes in the seat allow water to drain quickly so
sitting water will not collect.
Includes a removable plastic handle for added support.
Easily removed for storage and travel.
|
Bath Board Technical Specifications |
| Material |
Plastic (polypropylene) |
| Fits tub widths |
15" to 25" Adjust friction feet according to bathtub
size |
| Length of board |
27 inches |
| Width of board |
14" largest side 12" smaller size |
| Weight Capacity |
330 lbs. |
The Dependa Bar is available in the following configurations:
- Available in white or stainless steel finish
- Available in the two length - 18" or 32"
The Dependa Bar is also available without a Bath Board. See Product No. HC18
Questions? Call 1-888-833-8875 for assistance!
|
